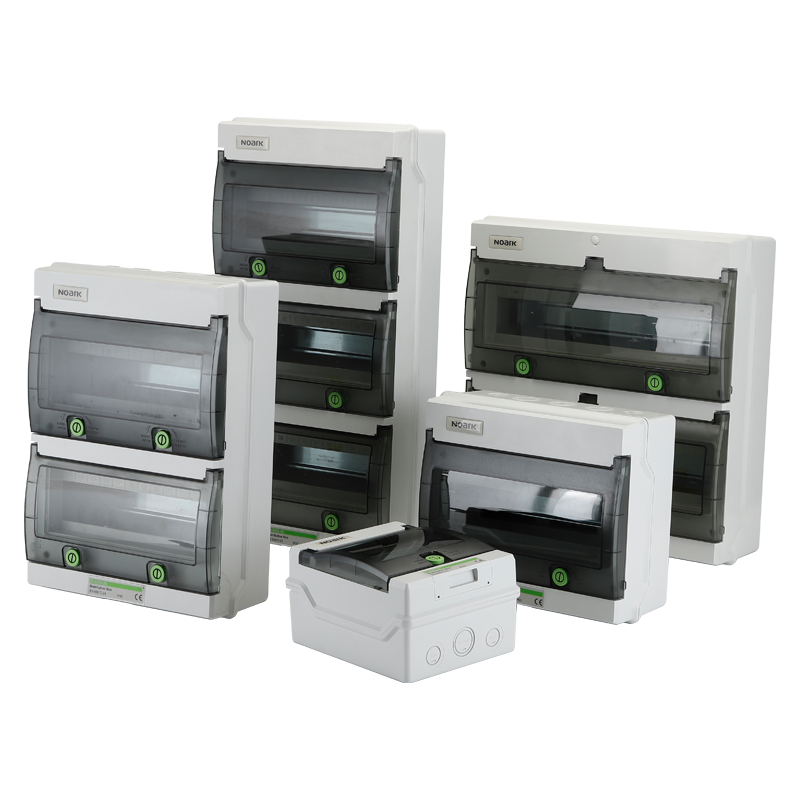

IP65 Distribution Box
Ex9XG
  • Modules (No.):4,6,9,12,18,24,36
  • Row:  Single row for 4,6,9,12,18 modules, 2 rows for 24,36 modules
  • Rated current (A):100
  • The color of door: Transparent
  • Mounting type: Surface
  • Degree of protection: IP65
  • Material: ABS for body & PC for door
  • Fire resistence: 650℃/30s
  • Ambient temperature (℃): -25~+40.max, 95% humidity
  • Storage temperature (℃): -40~+75

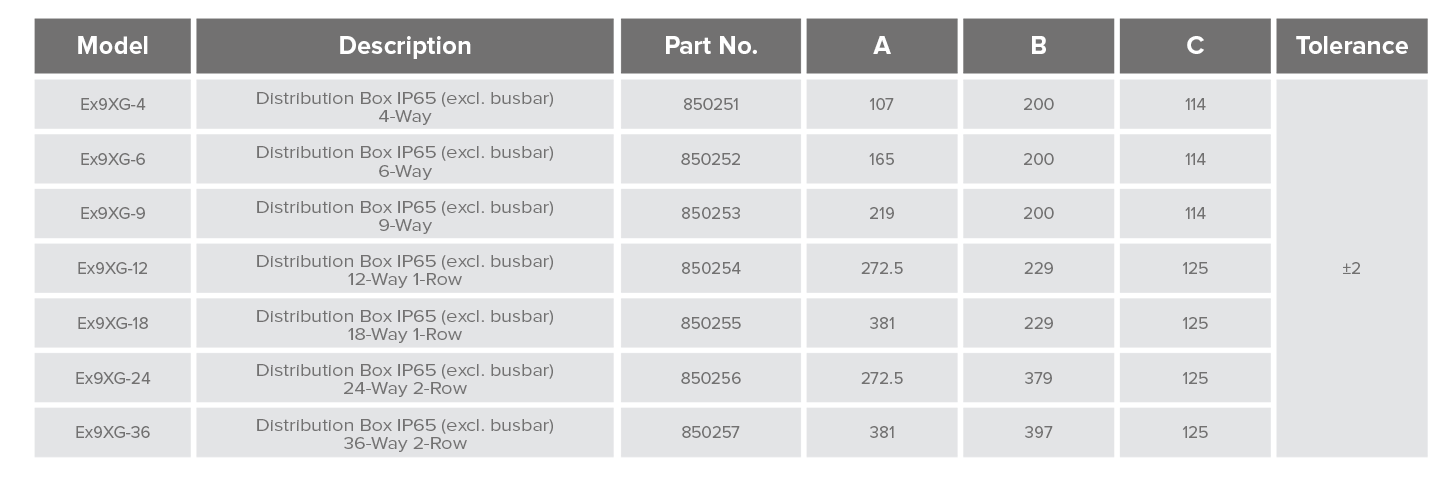

Model Selection
Documents
Document Name Type Size Format
Ex9XG CE Certificate 1,002.83KB PDF
Ex9XG Catalogue 2024 Catalogue 5.53MB PDF
Get code
The download is deemed to be consent《User Agreement and Privacy Policy》
Download Now
IP65 Distribution Box
Ex9XG
Selection Guide
Documents
Document Name Type Size Format
Ex9XG CE Certificate 1,002.83KB PDF
Ex9XG Catalogue 2024 Catalogue 5.53MB PDF
Get code
The download is deemed to be consent《User Agreement and Privacy Policy》
Download Now
