String combiner box provides functions of combining circuit and surge protection between PV modules and inverters.
With optional monitoring module, it could upload and monitor the status of current, voltage, switch and SPD. Electrical data is displayed by LED and transferred by the means of RS485.
ALL components are PV specialized by Noark, voltage of which is up to 1500VDC.
Different size of combiner box and different solution to meet different demands of customers.
Protection degree of IP 65.

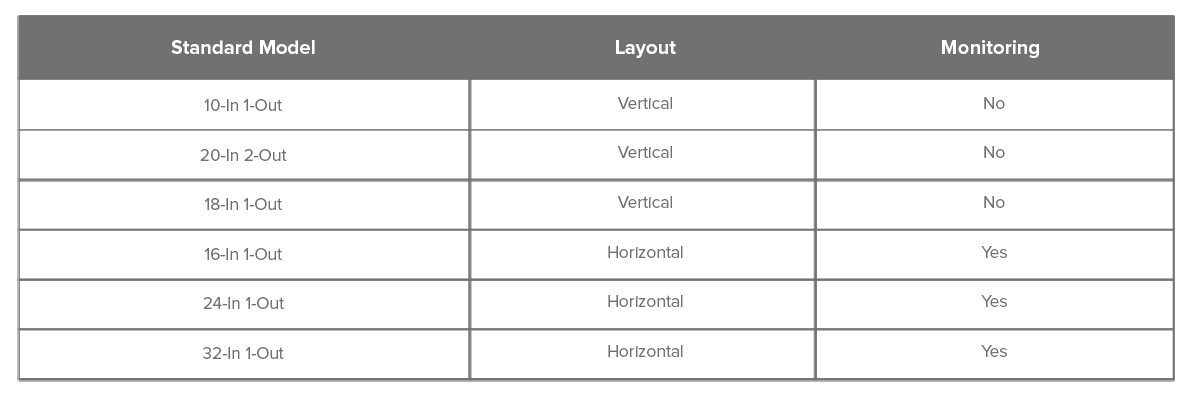

Model Selection

Documents

Document Name	Type	Size	Format
Noark String Combiner Box Brochure V2.0	Manual	43.51MB	PDF
Noark String Combiner Box Brochure Digital Version	Manual	7.49MB	PDF

Get code

The download is deemed to be consent《User Agreement and Privacy Policy》

Download Now

String Combiner Box

String combiner box provides functions of combining circuit and surge protection between PV modules and inverters.
With optional monitoring module, it could upload and monitor the status of current, voltage, switch and SPD. Electrical data is displayed by LED and transferred by the means of RS485.
ALL components are PV specialized by Noark, voltage of which is up to 1500VDC.
Different size of combiner box and different solution to meet different demands of customers.
Protection degree of IP 65.

Selection Guide
