DC MCCB
= 1500Vdc
Ex9MD3HV
Frame current:400A, 630A
Rated voltage: DC1500V
Rated current: 250A, 315A, 350A, 350A, 400A
Breaking capacity lcu(kA): 15kA
IP Grade: IP20
With isolation: YES
Standards: IEC/EN60947-2, GB/T14048.2
Certification: CE, CCC, CB

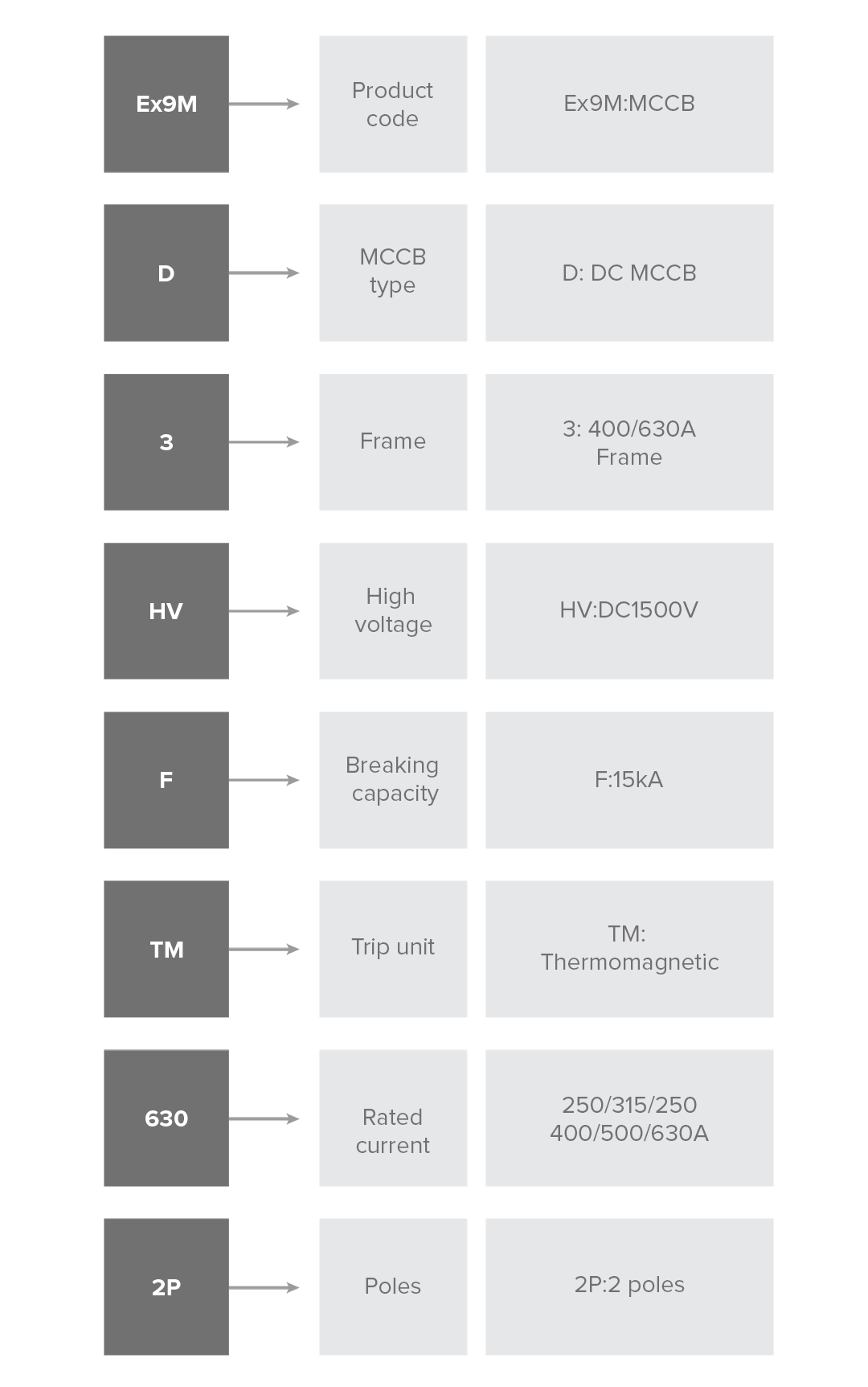

Model Selection
Documents
Document Name
Type
Size
Format
Ex9MD3HV Catalogue
Catalogue
1.70MB
PDF
Ex9MD3HV CE
Certificate
257.72KB
PDF
Ex9MD3HV TUV
Certificate
339.81KB
PDF
Ex9MD3HV STP
Drawing
36.94MB
STP
Ex9MD3HV Manual
Manual
12.65MB
PDF
Ex9MD3HV Datasheet
Catalogue
60.60KB
PDF
Get code
The download is deemed to be consent
《User Agreement and Privacy Policy》
Download Now
Get code
DC MCCB
= 1500Vdc
Ex9MD3HV
Frame current:400A, 630A
Rated voltage: DC1500V
Rated current: 250A, 315A, 350A, 350A, 400A
Breaking capacity lcu(kA): 15kA
IP Grade: IP20
With isolation: YES
Standards: IEC/EN60947-2, GB/T14048.2
Certification: CE, CCC, CB

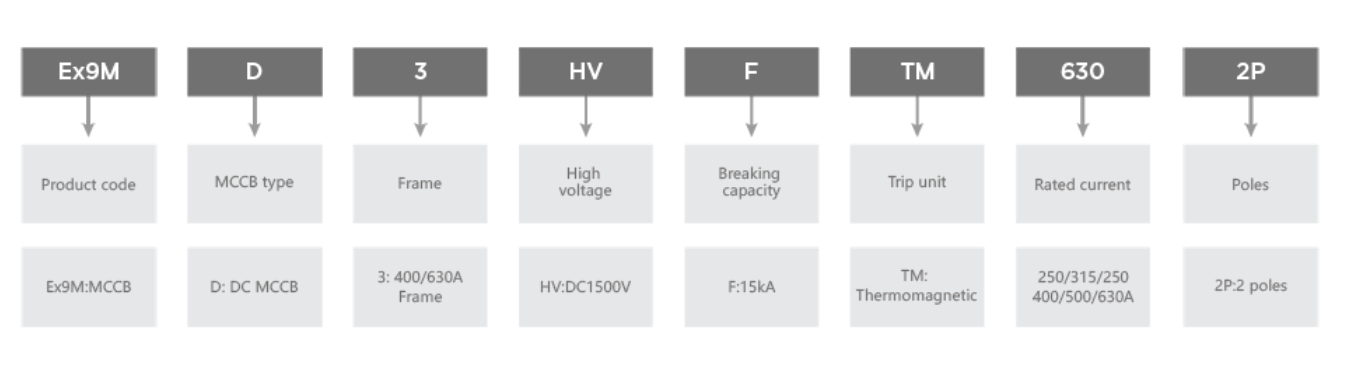

Selection Guide
