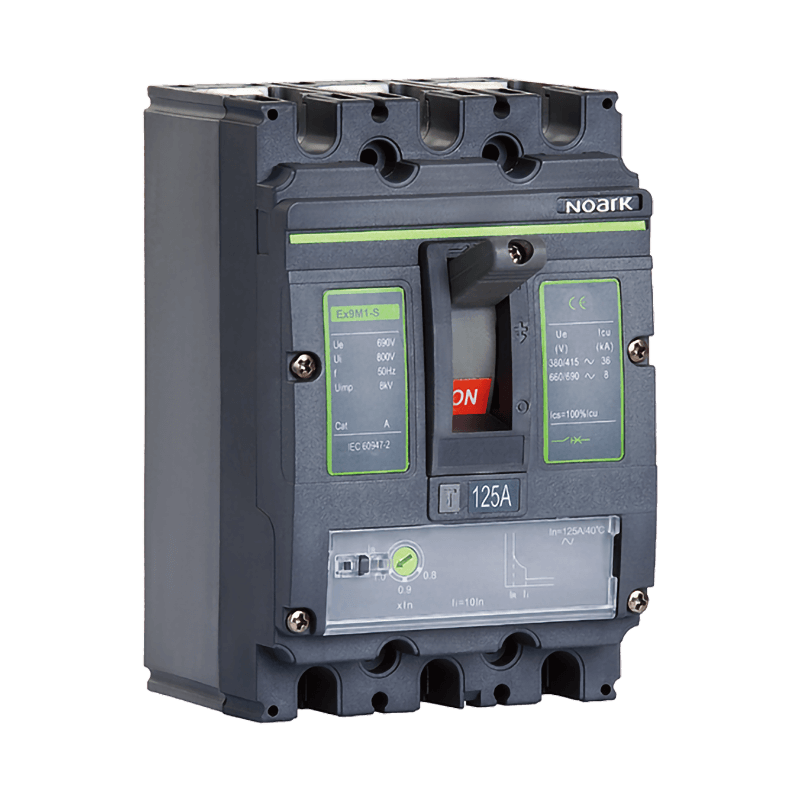

DC MCCB   ≤ 1000Vdc
Ex9MD
  • Thermo-magnetic tripping unit for power distribution
  • Frame sizes M1-M5
  • Rated operating current up to 800 A
  • 2, 3 and 4-pole versions
  • Rated ultimate short circuit breaking capacity lcu=lcs up to 100 kA
  • Rated voltage 500V DC(2-pole),750V DC(3-pole) and 1000V DC(4-pole)

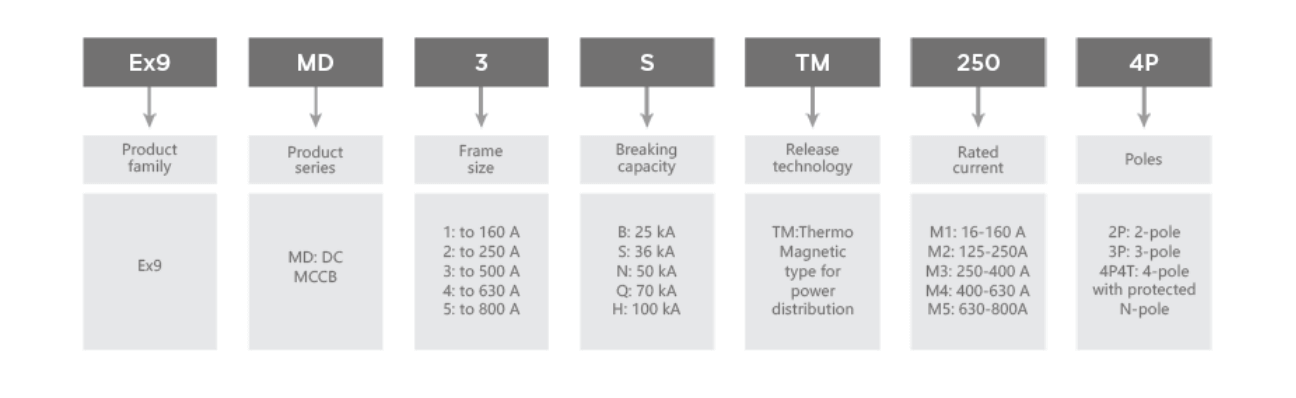

Model Selection
Documents
Document Name Type Size Format
Ex9MD Catalogue Catalogue 1.89MB PDF
Ex9M(D)1 TUV Certificate 1.60MB PDF
Ex9M(D)1 2P CB Certificate 950.56KB PDF
Ex9M(D)2 TUV Certificate 1.59MB PDF
Ex9M(D)2 2P CB Certificate 1.38MB PDF
Ex9M(D)3 TUV Certificate 858.85KB PDF
Ex9M(D)4-5 TUV Certificate 594.08KB PDF
Ex9MD1 1P-STP Drawing 6.54MB STP
Ex9MD1 2P-STP Drawing 10.08MB STP
Ex9MD2 1P-STP Drawing 9.39MB STP
Ex9MD2 2P-STP Drawing 12.68MB STP
Ex9MD2 3P-STP Drawing 13.99MB STP
Ex9MD2 4P-STP Drawing 26.98MB STP
EX9MD3 3P-STP Drawing 14.19MB STP
EX9MD3 4P-STP Drawing 14.57MB STP
Ex9MD4 5 3P-STP Drawing 13.62MB STP
Ex9MD4 5 4P-STP Drawing 16.55MB STP
Ex9MD1(SD) Manual Manual 14.06MB PDF
Ex9MD2(SD) Manual Manual 14.16MB PDF
Ex9MD3(SD) Manual Manual 48.75MB PDF
Ex9MD4&5(SD) Manual Manual 8.13MB PDF
Get code
The download is deemed to be consent《User Agreement and Privacy Policy》
Download Now
DC MCCB   ≤ 1000Vdc
Ex9MD

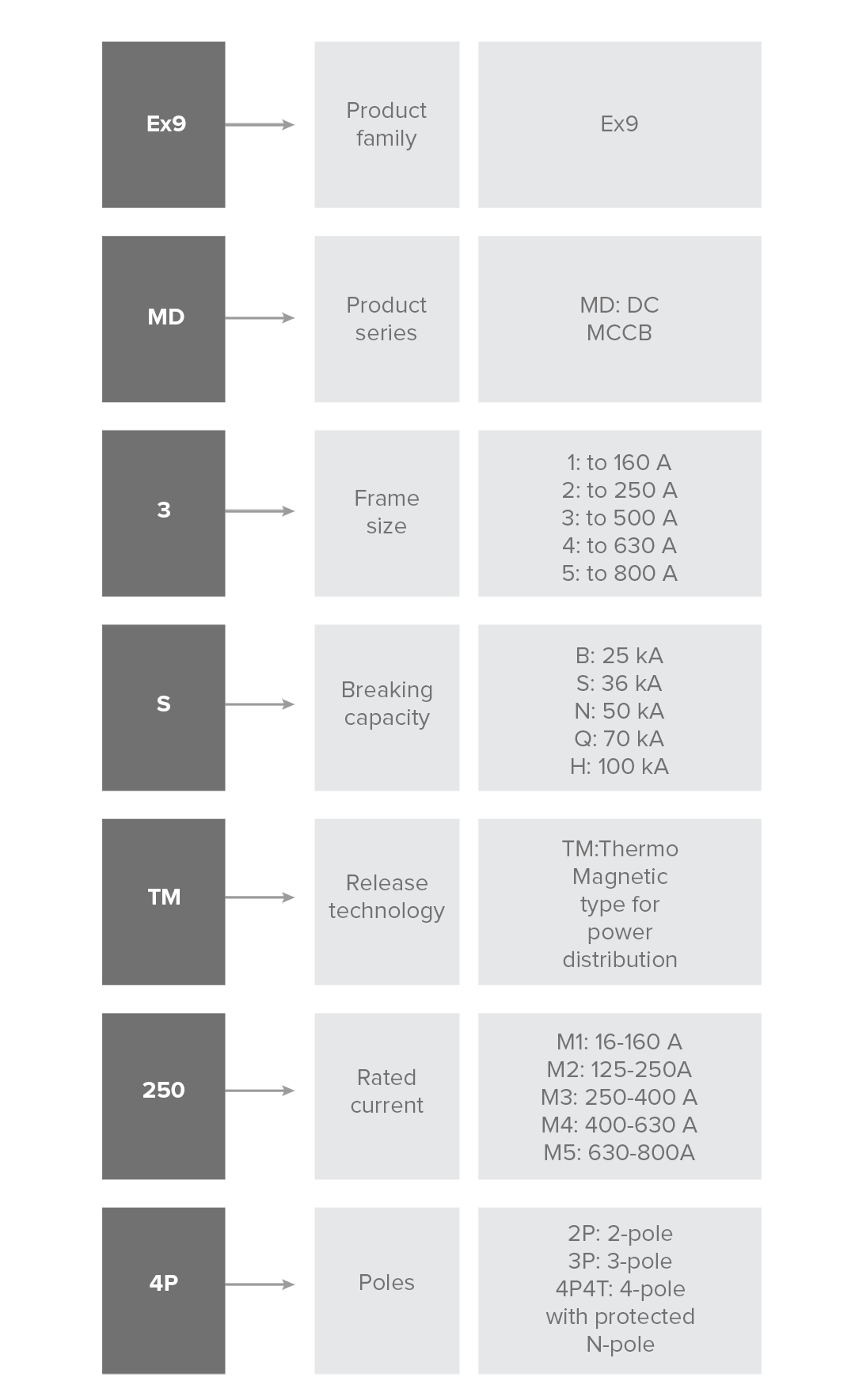

Selection Guide
