COMPONENTS
DC SPD
≤ 1500Vdc
Ex9UEP
Suitable for PV systems
PV T2(Class Il, Type 2, C) class SPDs
Meet requirements of EN 50539-11
Nominal discharge current In 20 kA (8/20 s) per path
Maximum discharge current lmax 40 kA (8/20us)
Max. continuous operational voltage UCPV from 600 to 1500 V DC
For grounded and ungrounded PV systems
Plug-in module design with status indication
Optional remote indication contact

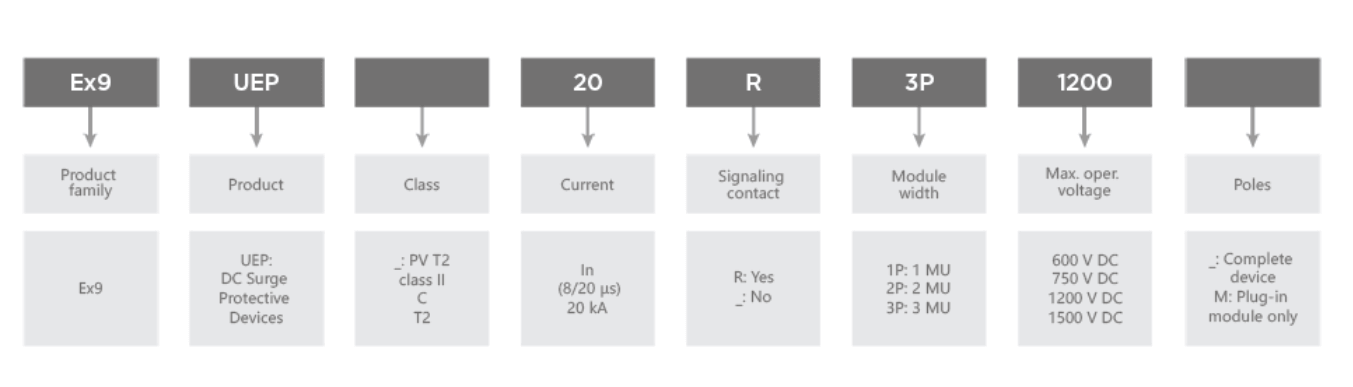

Model Selection
Documents
Document Name
Type
Size
Format
Ex9UEP Catalogue
Catalogue
207.96KB
PDF
Ex9UEP CE
Certificate
398.38KB
PDF
Ex9UEP 1P-STP
Drawing
3.87MB
STP
Ex9UEP 2P-STP
Drawing
6.36MB
STP
Ex9UEP 3P-STP
Drawing
5.96MB
STP
Ex9UEP Manual
Manual
4.80MB
PDF
Get code
The download is deemed to be consent
《User Agreement and Privacy Policy》
Download Now
Get code
DC SPD
≤ 1500Vdc
Ex9UEP
Suitable for PV systems
PV T2(Class Il, Type 2, C) class SPDs
Meet requirements of EN 50539-11
Nominal discharge current In 20 kA (8/20 s) per path
Maximum discharge current lmax 40 kA (8/20us)
Max. continuous operational voltage UCPV from 600 to 1500 V DC
For grounded and ungrounded PV systems
Plug-in module design with status indication
Optional remote indication contact

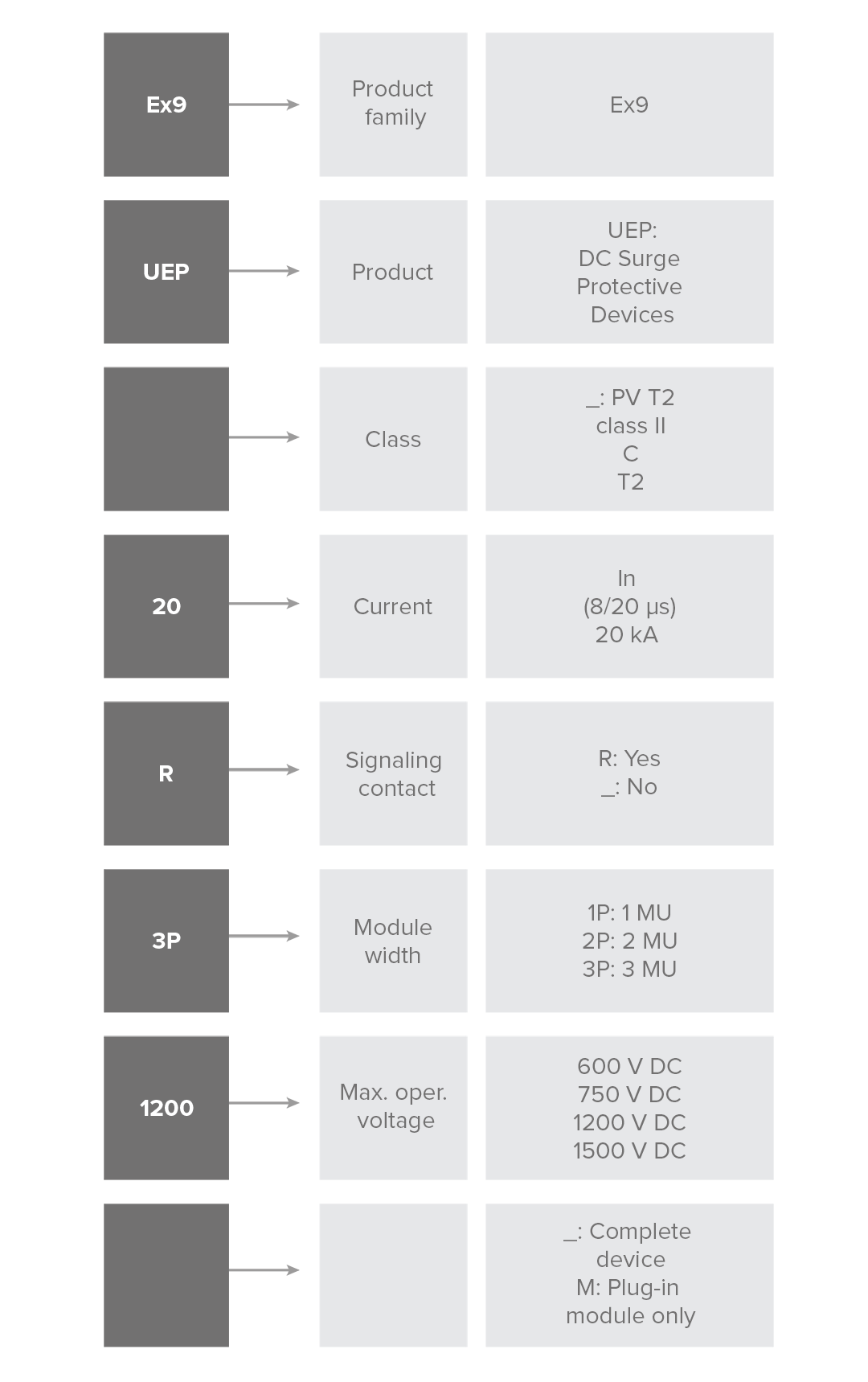

Selection Guide
